Aico Hard of Hearing Strobe Fire Alarm with vibration pad and RadioLINK interconnection
An Aico RadioLINK-enabled visual/tactile alarm designed for deaf and hard-of-hearing users who may be unable to hear a conventional auditory sounder. This alarm kit includes a high-intensity strobe light with a specially designed wide-angle lens, and it supports input from and output to other accessories via two auxiliary sockets, such as vibration discs, auto-diallers and alarm clocks.
This kit also includes a vibration disc to be placed underneath the user's pillow at night. When the alarm system is activated the disc will vibrate, providing a tactile warning of fire. Perfect for deep sleepers.
The alarm does not contain a sensor and so requires a connection to an Aico RadioLINK-enabled smoke/heat detector. The Ei170RF system is mains-powered and incorporates a rechargeable backup battery in the event of mains failure.

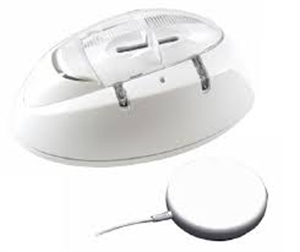

The Aico Ei170RF is a RadioLINK alarm system designed to give warning to the deaf and hard of hearing on receipt of an alarm or test signal. It consists of a control box with integral strobe and a plug-in vibration pad.
· Supply Voltage: 230V AC, 50Hz Transformer supplied with device
· Battery back-up: Sealed Rechargeable lead acid battery
· Power-On Indicator: Continuous Green LED when mains connected
· Amber light flashes every 4 seconds when mains is absent
· Alarm Indicators: Xenon tube strobe (1.5 Hz)
· Red LED flashes every second The vibration pad, in alarm, has an on-off 2 second cycle
· Fault Indicator: Amber LED flashes every 4 seconds when a fault is detected or battery is low
· RF Indicator: Blue LED on to indicate RF transmission
· Auxiliary Output 1: Provides 12V DC /180mA in alarm
· Auxiliary Output 2: Provides 12V DC /20mA in alarm
· Visual RF transmission and power indicators
· Unique House-Coding
· Auxiliary sockets for connection of additional devices
· Alarm Clock Input: 5-24V (AC or Mains isolated DC) 3.5mm mono jack socket
· Test Button: Tests strobe, vibration pad, panel and all connected RadioLINK smoke alarms and accessories
· Temperature Range: 0°C to 40°C
· Humidity Range: 15% to 95% Relative Humidity – non condensing
· Frequency: 868MHz band (1% duty cycle)
· Rechargeable battery back-up
· Interconnect: Up to 12 interconnected RadioLINK smoke/heat alarms and accessories (Ei3100RF, Ei3105RF, Ei3103RF, Ei405, Ei405TY, Ei168RC, Ei410, Ei411H. Ei428, Ei407,Ei174, Ei178)
· Accessories: Ei178 Auxiliary Strobe Light Ei174 Auxiliary Vibration Pad.
· Fixing: Wall or surface mounting screw fixings supplied
· Plastic material: UL94VO flame retardant
· Warranty: 5 year (limited) warranty
· Low battery power warning
· Approvals: BS 415:1990 electrical safety, CE Marked
