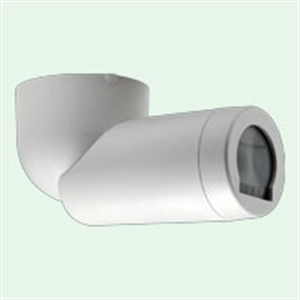

Ceiling long range directional PIR switch.
These directional PIR switches plug into a ceiling mounted socket. The socket can be mounted on a BESA box.
With a long range, narrow detection beam. Designed for corridors and storage aisles.
Specification
| Time lag range: |
10 seconds to 40 minutes in 9 steps |
| Photocell range: |
100 to 1000 lux, and inactive |
| Loading: |
Up to 6 amps (1500W) of resistive, transformer or fluorescent lighting loads, up to 2 amps (500W) of low energy lighting loads (LED lamps and compact fluorescent) or up to 1 amp (250W) of fans or most metal halide lamps |
| Dimensions: |
Unit: 102 x 60mm / Swivel Base: 74 x 64mm |
Detection Diagrams
|
Perspective view
 Strong detection zone
ie. person moving arm
 Secondary detection zone
ie. person walking (less sensitive when walking straight towards PIR switch)
PIR Quad detector gives 124 detection areas within the zone
|
 |
|
Plan view of detection zone
|
 |
|
Side elevation of detection zone
Ideal mounting height between 2.2 and 3m
|
 |
